| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | TUV CB CE RoHS SAA UKCA |
| Model Number: | SL-ST30B |
| Minimum Order Quantity: | 1 units |
|---|---|
| Price: | 1-100US$/unit |
| Packaging Details: | 1unit/carton |
| Delivery Time: | 18-20 days |
| Payment Terms: | T/T, L/C at sight, Western Union, Paypal |
| Supply Ability: | 700 units per working day |
| Lifetime: | 102,000 Hours (TUV TM21 Report) | Chip Brand: | Lumileds LUXEON 5050 / TYF 5050 |
|---|---|---|---|
| Warranty: | 5 Years | Lumens: | 190 Lm/W |
| IP Rating: | IP66 (TUV IP66 Report) | IK Rating: | IK08 |
| CCT: | 1800-6500K / PC AMBER | Certificate: | TUV CB CE RoHS SAA UKCA |

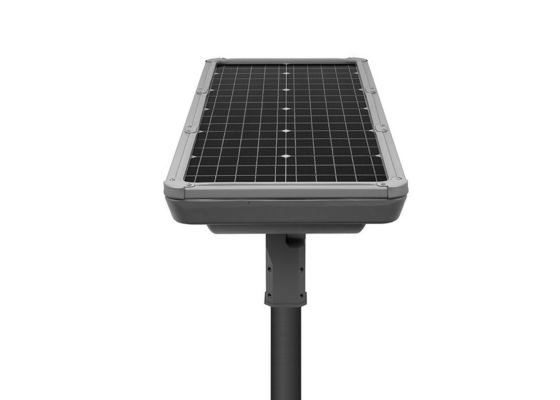

SHINING-STAR Series 190lm/W 30W IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty
| Part No. | SL-ST30B | SL-ST40B | SL-ST50B | SL-ST60B | SL-ST80B |
| Solar Panel Parameters | Monocrystalline 18V 40W |
Monocrystalline 18V 50W |
Monocrystalline 18V 60W
|
Monocrystalline 18V 80W
|
Monocrystalline 18V 100W
|
| Battery Parameters | LiFePO4 12.8V 18AH | LiFePO4 12.8V 24AH | LiFePO4 12.8V 30AH | LiFePO4 12.8V 36AH | LiFePO4 12.8V 42AH |
| System Voltage | 12V | ||||
| LED Brand | Lumileds 5050 / TYF5050 | ||||
| Light Distribution | TYPE II-S,TYPE II-M,TYPE III-M | ||||
| CCT | 2200K~6500K/PC AMBER | ||||
| Charge Time | 6 hours | ||||
| Working Time | 3-4 Days (Auto Control) | ||||
| Protection Grade | IP66(TUV IP66 report), IK08 | ||||
| Luminous Efficiency | 190 lm/W | ||||
| Operating Temperature | -20℃ to 60℃ | ||||
| Warranty | 5 Years | ||||
| Main Materials | Pure ADC12 Die-cast housing, optical PC lens | ||||
| Luminous Flux | 5700 lm | 7600 lm | 9500 lm | 11400 lm | 15200 lm |
| Nominal Power | 30W | 40W | 50W | 60W | 80W |
|
As The Market Similar Solar Light Power |
40W | 50W-60W | 60W-70W | 80W | 100W |
Maintenance of SHINING-STAR 190LM/W IP66 Integrated Solar LED Street Light 5 Years Warranty
Trouble shooting for SHINING-STAR IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty
| Phenomenon | Cause | Inspection methods | Solution |
|
Lights not work |
Switch does not turn on | Check whether the switch turns on | Turn on the switch |
| Switch failure | Make the switch short circuit, if it is still lighting up, could judge the switch failure. | Replace Switch | |
| Battery runs out | Long rainy day or wrong installation site could not charge enough power. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, then could judge battery runs out or low power cause system could not work. | Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. | |
| LED Failure | Firstly, adjust the DC power supply to voltage 9V and current less than 1A, then connect the positive and negative electrode of DC power supply to LED, if LED could not light, could judge LED failure. | If confirming LED failure, please contact us to return and replace. | |
|
Short lighting time |
Low battery |
Wrong installation or dust and leaves cover on solar panel cause not enough solor power to battery. 1. Check whether there is dust or leaves covering on the solar panel. 2. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, that could judge battery runs out or low power cause system could not work. |
1. Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. 2. Clean the solar panel. |
| Battery Failure |
Open the light and check if battery is dispalced or outer has been damaged . Battery maturing, lights used more than 2 years. |
1. If damage caused by transportation, please return to our factory for repairing or replacement. 2. Contact us to buy the same type battery if battery maturing. |
|
| No induct | Sensor Failure | Move in the range of detection under the half power lighting condition, if light not turns to full power ,could judge the sensor failure. | If confirming failure caused by controller or sensor, please return to our factory for repairing or replacement. |
| Flashing light | Controller (timer) setting wrong | Intelligent mode opens due to an exceeding output power of the controller and light flashing. | Return to our factory to reset or replace the products. |
The advantage of our factory to produce SHINING-STAR IP66 Integrated Solar LED Street Light
(1) Have cooperated with a lot of importers from overseas market for more than 12 years.
(2) Experienced in doing business with big customers. Provide OEM service for many brands.
(3) Quick delivery time for decent orders.
(4) Own designing team for new products development.
