Home ProductsEagle Gen4 190lm/W ENEC+ CB SAA Zhaga-D4i Street Light

EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting

EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting

    • EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting
    • EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting
    • EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting
    • EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting
    • EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting
    • EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting
  • EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting

    Product Details:

    Place of Origin: China
    Brand Name: SURPLUS LIGHTING
    Certification: TUV ENEC CB ENEC+ CE Zhaga-D4i RoHS SAA SASO
    Model Number: SL-ST120WxxE4IGH1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 1-100 USD/unit
    Packaging Details: Standard packaging or customized
    Delivery Time: 10-18 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 60000pcs per month
    Contact Now
    Detailed Product Description
    Power: 120W Efficiency: 190lm/W
    Driver: INVENTRONICS PF: ≥0.98
    IP Rating: IP66 IK Rating: IK09
    IES: Type II (S/M), Type III (S/M) Warranty: 5 / 7 / 10 Years
    Surge Protection: 10KV / 20KV Dimmable: DALI-2 / AC Dim / Timer Dimming

    EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i ENEC+ Approved 10 Years Warranty Public Lighting





    EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting

    EAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public LightingEAGLE GEN4 IP66 IK09 190LM/W 120W LED Street Light SAA CB CE ENEC Zhaga-D4i Approved 10 Years Warranty Public Lighting



     Class I Eagle Gen4 190lm/W LED street light DALI-2 / AC dim / Timer dimming Zhaga-D4i DALI dimming street light datasheet



    Product Code

    SL-ST25Wxx

    E4IGH1

    SL-ST30Wxx

    E4IGH1

    SL-ST40Wxx

    E4IGH1

    SL-ST50Wxx

    E4IGH1

    SL-ST60Wxx

    E4IGH1

    SL-ST80Wxx

    E4IGH1

    SL-ST100Wxx

    E4IGH1

    SL-ST120Wxx

    E4IGH1

    SL-ST150Wxx

    E4IGH1

    SL-ST165Wxx

    E4IGH1

    Power 25W 30W 40W 50W 60W 80W 100W 120W 150W 165W
    Luminous Efficacy 190lm/W
    Input Voltage AC200-240V
    Chip Brand TYF5050 / GUANGYOU 5050 (Lumileds LUXEON 5050 optional)

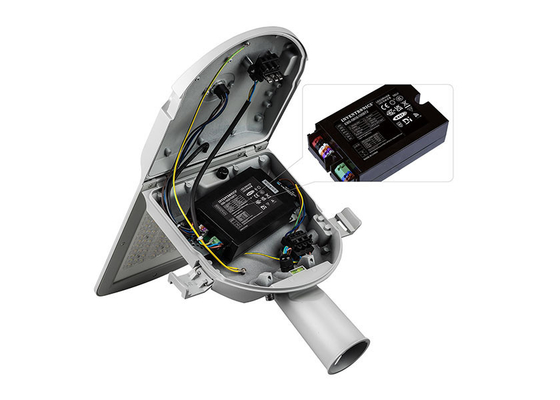

    Driver Brand INVENTRONICS
    Surge Protection Support built-in 10KV/20KV SPD
    Ral code RAL9006
    CRI >70Ra
    CCT 2700K-6500K
    PF ≥0.98
    Beam Angle Type II S, Type II M, Type III S, Type III M
    L90B10 100,000 hours
    Life Span ≧120,000 hours (L70, TUV TM21 report)
    IP Grade IP66
    Operating Tem. -40~50℃
    Material ADC12, anti UV IK10 optical PC lens, IK09 tempered glass





    TUV ENEC ENEC+ Zhaga-D4i certified Eagle Gen4 street light Features:



    Full Power at Wide Output Current Range (Constant Power).
    Adjustable Output Current (AOC) with NFC.

    Output Lumen Compensation.

    Thermal Sensing and Protection for LED Module.

    Suitable for Luminaires with Protection Class I and II.

    Available with anti-glare shield.
    Beam angle: T2 medium, T2 short, T3 medium, T3 short.

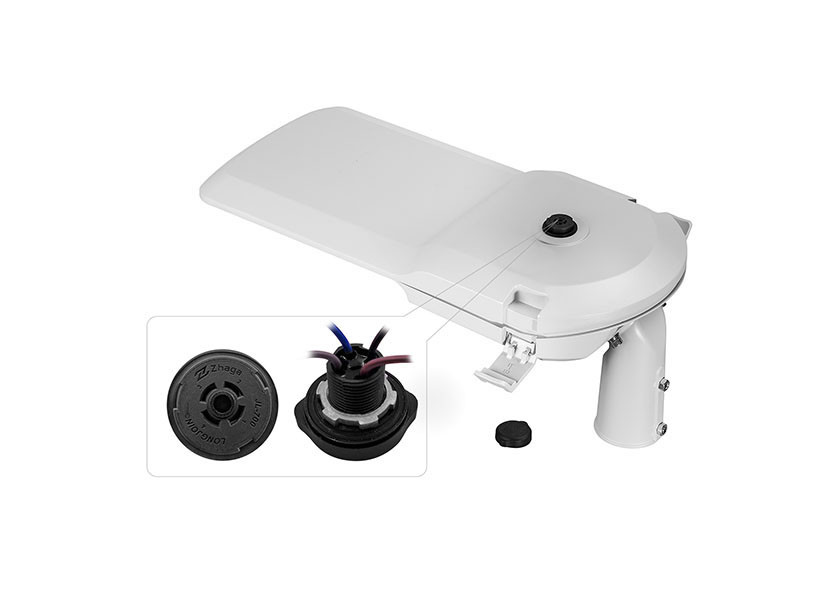

    With Zhaga interface: DALI-2 / AC dim / Timer dimming.
    Optional C5-M grade finishing painting, chromic treatment for the housing, approved by TUV C5-M report, TUV 720 hours neutral salt spray test + 480 hours water condensation test.
