| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | TUV ENEC CB ENEC+ CE Zhaga-D4i RoHS SAA SASO |
| Model Number: | SL-ST150WxxE4IGH2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1-100 USD/unit |
| Packaging Details: | Standard packaging or customized |
| Delivery Time: | 10-18 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60000pcs per month |
| Power: | 150W | Efficiency: | 190lm/W |
|---|---|---|---|
| Driver: | INVENTRONICS | PF: | ≥0.98 |
| IP Rating: | IP66 | IK Rating: | IK09 |
| IES: | Type II (S/M), Type III (S/M) | Warranty: | 5 / 7 / 10 Years |
| Surge Protection: | 10KV / 20KV | Dimmable: | DALI-2 / AC Dim / Timer Dimming |
| Protection Class: | Class II | Ambient Temperature: | 50°C |

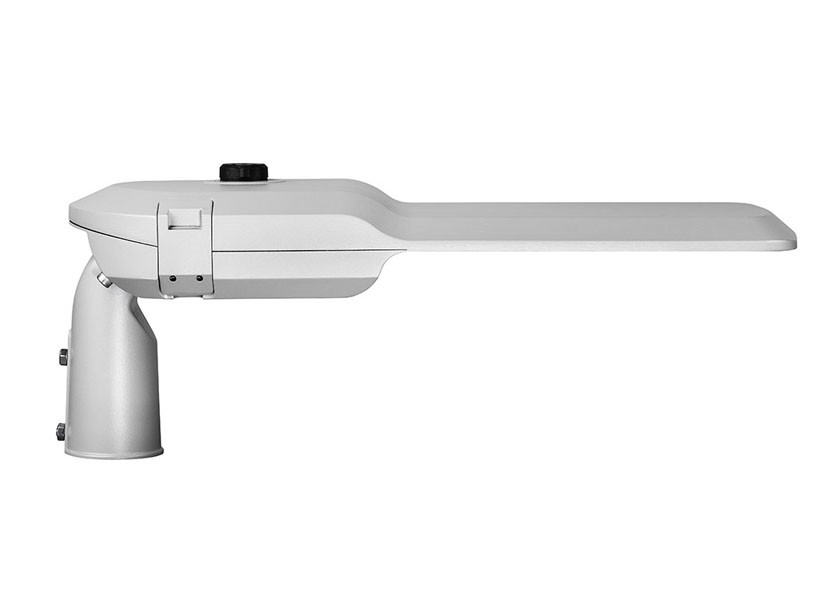

Class II Eagle Gen4 190lm/W LED street light DALI-2 / AC dim / Timer dimming Zhaga-D4i DALI dimming street light datasheet
| Product Code |
SL-ST25Wxx E4IGH2 |
SL-ST30Wxx E4IGH2 |
SL-ST40Wxx E4IGH2 |
SL-ST50Wxx E4IGH2 |
SL-ST60Wxx E4IGH2 |
SL-ST80Wxx E4IGH2 |
SL-ST100Wxx E4IGH2 |
SL-ST120Wxx E4IGH2 |
SL-ST150Wxx E4IGH2 |
SL-ST165Wxx E4IGH2 |
| Power | 25W | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 165W |
| Luminous Efficacy | 190lm/W | |||||||||
| Input Voltage | AC200-240V | |||||||||
| Chip Brand | TYF5050 / GUANGYOU 5050 (Lumileds LUXEON 5050 optional) | |||||||||
| Driver Brand | INVENTRONICS | |||||||||
| Surge Protection | Support built-in 10KV/20KV SPD | |||||||||
| Ral code | RAL9006 | |||||||||
| CRI | >70Ra | |||||||||
| CCT | 2700K-6500K | |||||||||
| PF | ≥0.98 | |||||||||
| Beam Angle | Type II S, Type II M, Type III S, Type III M | |||||||||
| L90B10 | 100,000 hours | |||||||||
| Life Span | ≧120,000 hours (L70, TUV TM21 report) | |||||||||
| IP Grade | IP66 | |||||||||
| Operating Tem. | -40~50℃ | |||||||||
| Material | ADC12, anti UV IK10 optical PC lens, IK09 tempered glass | |||||||||
TUV ENEC ENEC+ Zhaga-D4i certified Eagle Gen4 street light Features:
Full Power at Wide Output Current Range (Constant Power).
Adjustable Output Current (AOC) with NFC.
Output Lumen Compensation.
Thermal Sensing and Protection for LED Module.
Suitable for Luminaires with Protection Class I and II.
Available with anti-glare shield.
Beam angle: T2 medium, T2 short, T3 medium, T3 short.

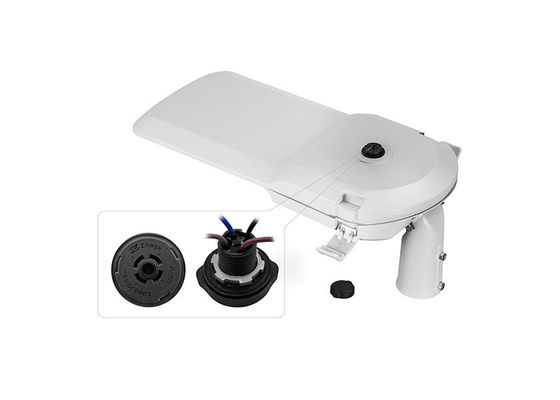

With Zhaga interface: DALI-2 / AC dim / Timer dimming.
Optional C5-M grade finishing painting, chromic treatment for the housing, approved by TUV C5-M report, TUV 720 hours neutral salt spray test + 480 hours water condensation test.
