| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | TUV ENEC CB SASO ENEC+ CE Zhaga-D4i RoHS SAA GMA |
| Model Number: | SL-ST80WxxE4IGH1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1-100 USD/unit |
| Packaging Details: | Standard packaging or customized |
| Delivery Time: | 10-18 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60000pcs per month |
| Power: | 80W | Efficiency: | 190lm/W |
|---|---|---|---|
| Driver: | INVENTRONICS | PF: | ≥0.98 |
| IP Rating: | IP66 | IK Rating: | IK09 |
| IES: | Type II (S/M), Type III (S/M) | Warranty: | 5 / 7 / 10 Years |
| Surge Protection: | 10KV / 20KV / 40KV | Dimmable: | DALI-2 / AC Dim / Timer Dimming |
| Protection Class: | Class I | Ambient Temperature: | 50°C |
| L90B10: | 100,000h Indicated On TUV ENEC+ | TM21: | 120,000h Indicated On TUV TM21 |

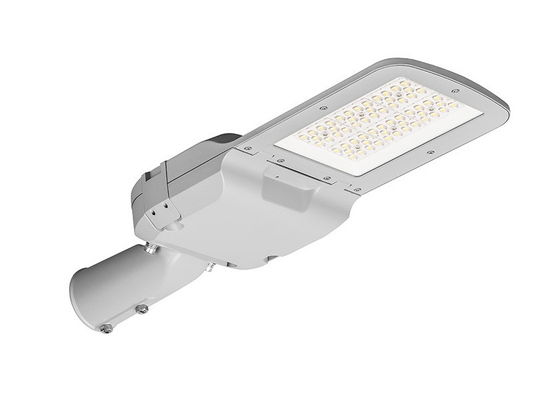

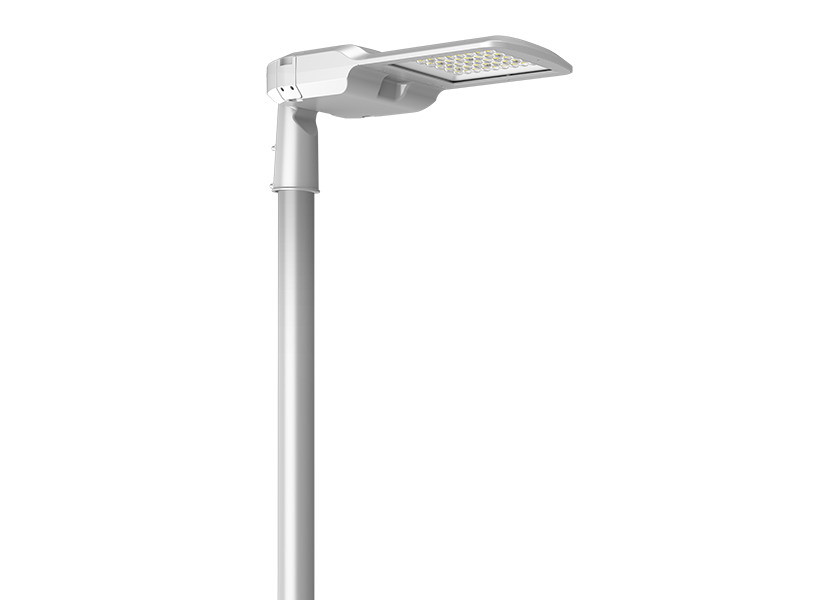

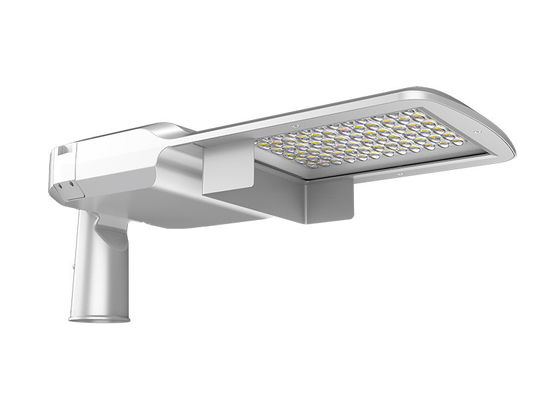

Class I Eagle Gen4 190lm/W LED street light DALI-2 / AC dim / Timer dimming Zhaga-D4i DALI dimming street light datasheet
| Product Code |
SL-ST25Wxx E4IGH1 |
SL-ST30Wxx E4IGH1 |
SL-ST40Wxx E4IGH1 |
SL-ST50Wxx E4IGH1 |
SL-ST60Wxx E4IGH1 |
SL-ST80Wxx E4IGH1 |
SL-ST100Wxx E4IGH1 |
SL-ST120Wxx E4IGH1 |
SL-ST150Wxx E4IGH1 |
SL-ST165Wxx E4IGH1 |
| Power | 25W | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 165W |
| Luminous Efficacy | 190lm/W | |||||||||
| Input Voltage | AC200-240V | |||||||||
| Chip Brand | TYF5050 / GUANGYOU 5050 (Lumileds LUXEON 5050 optional) | |||||||||
| Driver Brand | INVENTRONICS | |||||||||
| Surge Protection | Support built-in 10KV/20KV SPD | |||||||||
| Ral code | RAL9006 | |||||||||
| CRI | >70Ra | |||||||||
| CCT | 1700K-6500K | |||||||||
| PF | ≥0.98 | |||||||||
| Beam Angle | Type II S, Type II M, Type III S, Type III M | |||||||||
| L90B10 | 100,000 hours | |||||||||
| Life Span | ≧120,000 hours (L70, TUV TM21 report) | |||||||||
| IP Grade | IP66 | |||||||||
| Operating Tem. | -40~50℃ | |||||||||
| Material | ADC12, anti UV IK10 optical PC lens, IK09 tempered glass | |||||||||
TUV ENEC CB SASO ENEC+ Zhaga-D4i certified Eagle Gen4 LED street light IP66 IK09 Features:
Full Power at Wide Output Current Range (Constant Power).
Adjustable Output Current (AOC) with NFC.
Output Lumen Compensation.
Thermal Sensing and Protection for LED Module.
Suitable for Luminaires with Protection Class I and II.
Available with anti-glare shield.
Beam angle: T2 medium, T2 short, T3 medium, T3 short.
With Zhaga interface: DALI-2 / AC dim / Timer dimming.
High product reliability by applying 13 steps painting process, high efficiency coating.
Optional C5-M marine grade finishing painting, chromic treatment for the housing, approved by TUV C5-M report, TUV 720 hours neutral salt spray test + 480 hours water condensation test.
Smart city lighting Eagle Gen4 LED street light TUV ENEC CB SASO ENEC+ certified

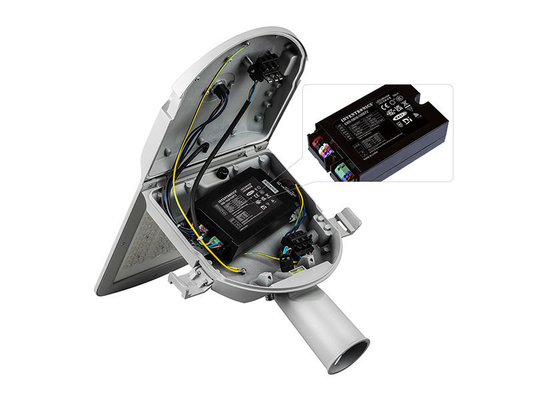

Tested for compliance against Zhaga specifications,provide with Zhaga-D4i certificate. Powered by D4i driver, extend for smart city lighting system, DALI-2 / AC dim / Timer dimming.
Eagle Gen4 LED street light compatible with Software Management System
Web-based management platform, run on AWS/Alibaba cloud server, remotely turn lights on/off, dimming in real-time or preset time; record of power, voltage, current; local strategy, fault alarm, group control and more functions.
