| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | TUV ENEC CB SASO ENEC+ CE Zhaga-D4i RoHS SAA GMA |
| Model Number: | SL-ST60WxxE4IGH1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1-100 USD/unit |
| Packaging Details: | Standard packaging or customized |
| Delivery Time: | 10-18 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60000pcs per month |
| Power: | 60W | Efficiency: | 190lm/W |
|---|---|---|---|
| Driver: | INVENTRONICS | PF: | ≥0.98 |
| IP Rating: | IP66 | IK Rating: | IK09 |
| IES: | Type II (S/M), Type III (S/M) | Warranty: | 5 / 7 / 10 Years |
| Surge Protection: | 10KV / 20KV / 40KV | Dimmable: | DALI-2 / AC Dim / Timer Dimming |
| Protection Class: | Class I | Ambient Temperature: | 50°C |
| L90B10: | 100,000h Indicated On TUV ENEC+ | TM21: | 120,000h Indicated On TUV TM21 |
Products Features of ENEC ENEC+ CB SASO Certified Smart City Lighting Eagle Gen4 LED street light IP66 IK09 Rated
Zhaga-D4i luminaires, tested for compliance against Zhaga specifications,provide with Zhaga-D4i certificate.
Smart lighting system, DALI-2 / AC dim / Timer dimming.
With 5/7 PIN NEMA socket: 0~10Vdc / PWM / Timer dimming.
TUV ENEC, ENEC+, CB, SASO, SAA, GMA, CE, RETILAP, INMETRO, RoHS certified.
Smart and modern design, free-tool maintenance, the minimalist design puts the focus squarely on the product itself and the buckle design on the cover of the lamp enables you to open the luminaires without tools.
Excellent heat dissipation design, sleek appearance design decreases the dust falling on the fixture.
Power-off automatically, built-in power-off protection device, luminaires will automatically and immediately cut off the power when the luminaries opened, to ensure safety maintenance.

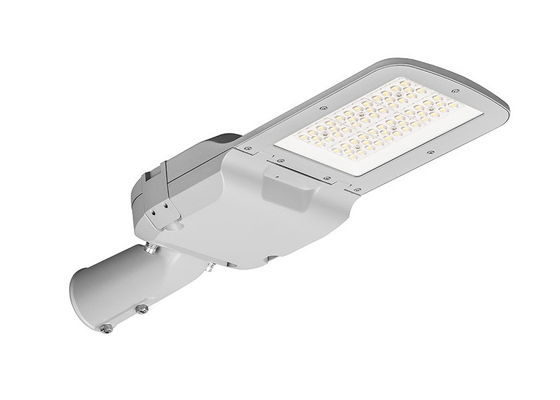

System lumens output up to 190lm/W, powered by TYF / GUANGYOU 5050 LED, high efficacy and superior robustness in a multi-die, high power package, enabling cost-effective system design.
Provide 5/7/10 year warranty, provide standard 5 year warranty, optional 7/10 year warranty for the luminaires.
A variety of drivers are available, such as SOSEN, MOSO, INVENTRONICS,UPOWERTEK, MEAN WELL, TRIDONIC.
Anti-ultraviolet radiation optical PC lens (PMMA lens optional)
Anti-ultraviolet radiation PC optical lens with high light transmittance and secondary light dissipation technology, optional light distribution curve, available with optics Type II (S/M), Type III (S/M)
No light pollution for residential areas.
Support built-in 10KV / 20KV /40KV SPD (surge protection device), extends the lifetime of the product while protecting the driver and the luminaires from thunder too.

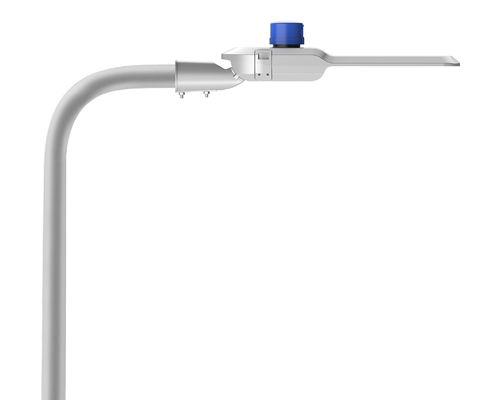

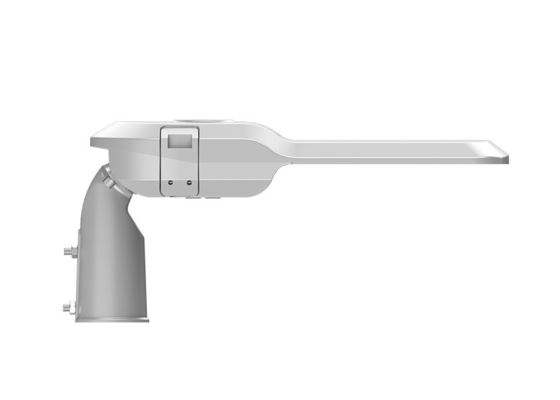

Adjustable bracket 0°-90°, adjustable bracket for horizontal or vertical installation.
High product reliability by applying 13 steps painting process, high efficiency coating. Paint and metal parts successfully passed the 500 hours salt spray test.
Class I Class II Eagle Gen4 190lm/W LED street light DALI-2 / AC dim / Timer dimming Zhaga-D4i DALI dimming street light datasheet
| Product Code | SL-ST25Wxx | SL-ST30Wxx | SL-ST40Wxx | SL-ST50Wxx | SL-ST60Wxx | SL-ST80Wxx | SL-ST100Wxx | SL-ST120Wxx | SL-ST150Wxx | SL-ST165Wxx |
| Power | 25W | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 165W |
| Luminous Efficacy | 190lm/W | |||||||||
| Input Voltage | AC200-240V | |||||||||
| Chip Brand | TYF5050 / GUANGYOU 5050 (Lumileds LUXEON 5050 optional) | |||||||||
| Driver Brand | INVENTRONICS | |||||||||
| Surge Protection | Support built-in 10KV/20KV SPD | |||||||||
| Ral code | RAL9006 | |||||||||
| CRI | >70Ra | |||||||||
| CCT | 1700K-6500K | |||||||||
| PF | ≥0.98 | |||||||||
| Beam Angle | Type II S, Type II M, Type III S, Type III M | |||||||||
| L90B10 | 100,000 hours | |||||||||
| Life Span | ≧120,000 hours (L70, TUV TM21 report) | |||||||||
| IP Grade | IP66 | |||||||||
| Operating Tem. | -40~50℃ | |||||||||
| Material | ADC12, anti UV IK10 optical PC lens, IK09 tempered glass | |||||||||
TUV ENEC CB SASO ENEC+ Zhaga-D4i certified Eagle Gen4 LED street light IP66 IK09 Features:
Full Power at Wide Output Current Range (Constant Power).
Adjustable Output Current (AOC) with NFC.
Output Lumen Compensation.
Thermal Sensing and Protection for LED Module.
Suitable for Luminaires with Protection Class I and II.
Available with anti-glare shield.
Beam angle: T2 medium, T2 short, T3 medium, T3 short.
With Zhaga interface: DALI-2 / AC dim / Timer dimming.
High product reliability by applying 13 steps painting process, high efficiency coating.
Optional C5-M marine grade finishing painting, chromic treatment for the housing, approved by TUV C5-M report, TUV 720 hours neutral salt spray test + 480 hours water condensation test.

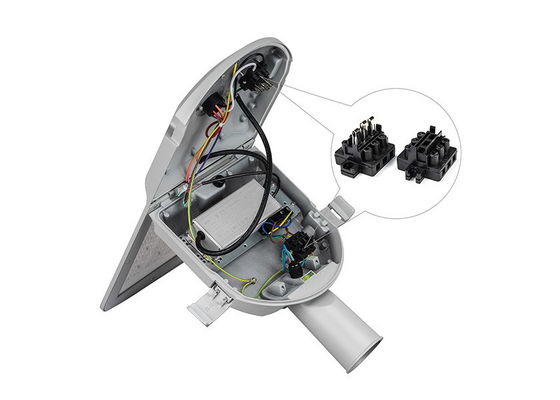

Smart and modern design, free-tool maintenance, free-tool opening,
The minimalist design puts the focus squarely on the product itself and the buckle design on the cover of the Eagle Gen4 LED street light enables you to open the luminaires without tools.
Power-off automatically
Built-in power-off protection device, Eagle Gen4 LED street light will automatically and immediately cut off the power when the luminaries opened, to ensure safety maintenance.
Built-in 10KV or 20KV surge protection device, optional 40KV SPD
10KV or 20KV UL and TUV mark approved surge protection device ensure reliable and steady operating, extends the lifetime of the Eagle Gen4 LED street light while protecting the driver and the luminaire from lightnings too.

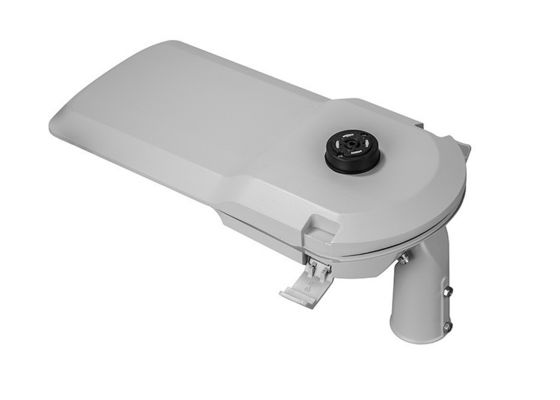

5 pin and 7 pin NEMA socket to extend for the 0-10V dimming or DALI dimming Eagle Gen4 LED street light LED road lighting.
DALI control. Luminaries can be controlled by a computer.
1-10V dimming. Luminance can be divided into 10 level, set it upon your specific requirements.
Anti-glare shield used for Eagle Gen4 street light
Equipped with anti-glare shield, good solution to aviod light pollution.
Smart city lighting Eagle Gen4 LED street light TUV ENEC CB SASO ENEC+ certified
Tested for compliance against Zhaga specifications,provide with Zhaga-D4i certificate. Powered by D4i driver, extend for smart city lighting system, DALI-2 / AC dim / Timer dimming.
Eagle Gen4 LED street light compatible with Software Management System
Web-based management platform, run on AWS/Alibaba cloud server, remotely turn lights on/off, dimming in real-time or preset time; record of power, voltage, current; local strategy, fault alarm, group control and more functions.
