| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | TUV ENEC CB CE RoHS SAA UKCA |
| Model Number: | SL-ST40B3 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | 1-100US$/unit |
| Packaging Details: | Standard packaging or customized |
| Delivery Time: | 10-18 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9,000 units per month |
| Lifetime: | 120,000 Hours (TM21 Report) | LED Brand: | Guangyou 5050 |
|---|---|---|---|
| Warranty: | 5 Years | Lumens: | 220lm/W (LM79 Report) |
| IP Rating: | IP66 | IK Rating: | IK08 |
| CCT: | 1700-6500K / PC AMBER | Battery: | 4000 Cycles LiFePO4 |
| Rated Power: | 40W | Type: | All In One Integrated Solar Street Light |

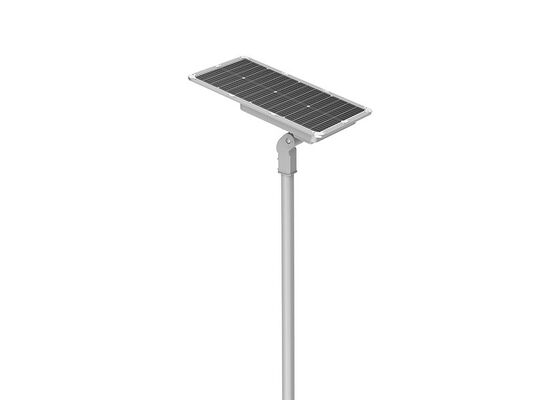

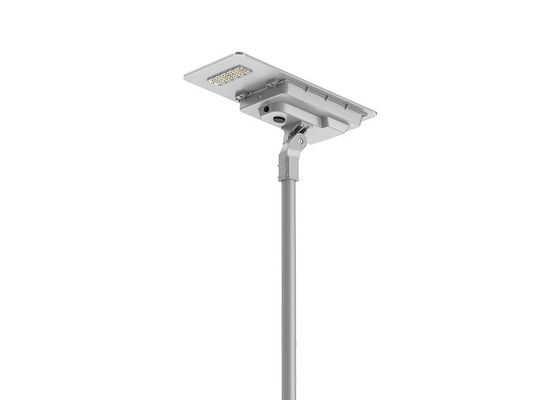

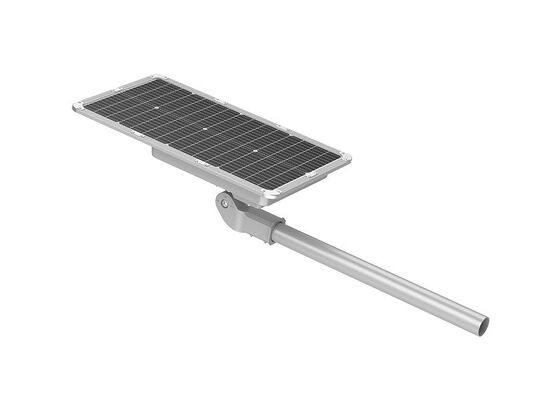

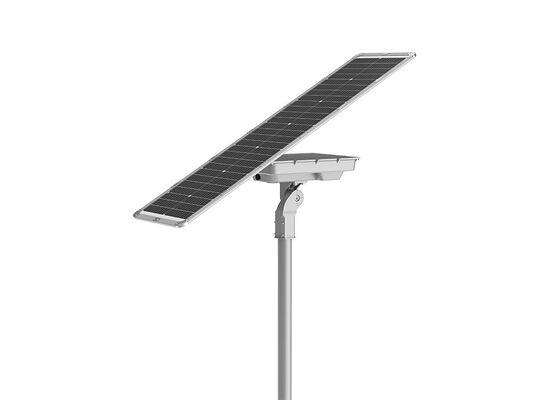

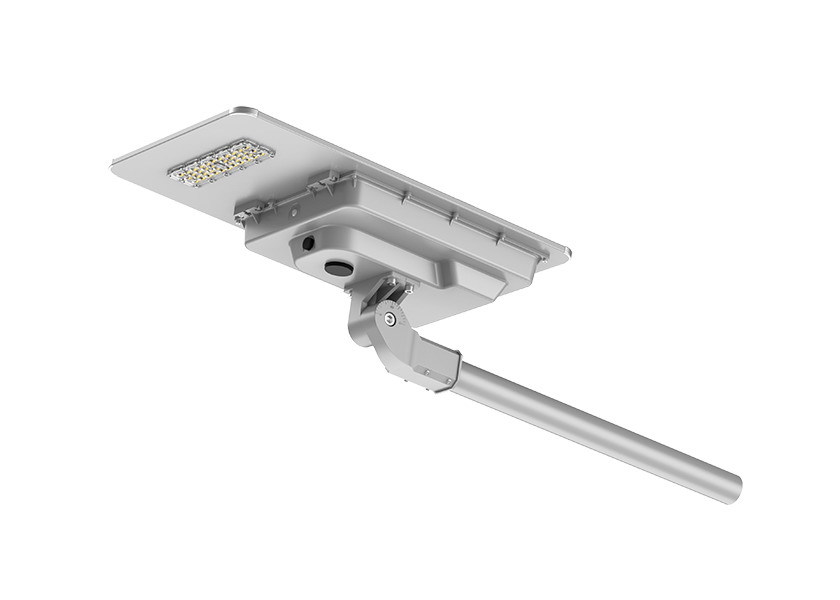

SHINING-STAR GEN3 Series 220lm/W 40W IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty All in One Solar Light
| Part No. | SL-ST30B3 | SL-ST40B3 | SL-ST50B3 | SL-ST60B3 | SL-ST80B3 |
| Solar Panel Parameters | Monocrystalline 18V 40W | Monocrystalline 18V 50W |
Monocrystalline 18V 66W
|
Monocrystalline 18V 85W
|
Monocrystalline 18V 100W
|
| Battery Parameters | LiFePO4 12.8V 15AH | LiFePO4 12.8V 30AH | LiFePO4 12.8V 30AH | LiFePO4 12.8V 45AH | LiFePO4 12.8V 45AH |
| System Voltage | 12V | ||||
| LED Brand | Lumileds 5050 / TYF5050 / Guangyou 5050 | ||||
| Light Distribution | TYPE II Medium 80°x155° | ||||
| CCT | 1700K~6500K/ PC AMBER / 1700K<1% blue | ||||
| Charge Time | 6~8 hours | ||||
| Working Time | 3-4 days (Auto Control) | ||||
| Protection Grade | IP66(TUV IP66 report), IK08 | ||||
| Luminous Efficiency | 220 lm/W | ||||
| Operating Temperature | -20℃ to 60℃ | ||||
| Warranty | 5 /7 /10 years warranty | ||||
| Main Materials | ADC12 Die-cast housing, optical PC lens | ||||
| Luminous Flux | 6600 lm | 8800 lm | 11000 lm | 13200 lm | 17600 lm |
| Rated Power | 30W | 40W | 50W | 60W | 80W |
|
Tested |
IEC 62321-1:2013, IEC 62321-2:2021, IEC 62321-3-1:2013, IEC 62321-5:2013, IEC 62321-4:2013+AMD1:2017 CSV, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017 |
||||
Maintenance of SHINING-STAR GEN3 series 220LM/W IP66 Integrated Solar LED Street Light 5 Years Warranty
Trouble shooting for SHINING-STAR GEN3 series IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty
| Phenomenon | Cause | Inspection methods | Solution |
|
Lights not work |
Switch does not turn on | Check whether the switch turns on | Turn on the switch |
| Switch failure | Make the switch short circuit, if it is still lighting up, could judge the switch failure. | Replace Switch | |
| Battery runs out | Long rainy day or wrong installation site could not charge enough power. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, then could judge battery runs out or low power cause system could not work. | Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. | |
| LED Failure | Firstly, adjust the DC power supply to voltage 9V and current less than 1A, then connect the positive and negative electrode of DC power supply to LED, if LED could not light, could judge LED failure. | If confirming LED failure, please contact us to return and replace. | |
|
Short lighting time |
Low battery |
Wrong installation or dust and leaves cover on solar panel cause not enough solor power to battery. 1. Check whether there is dust or leaves covering on the solar panel. 2. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, that could judge battery runs out or low power cause system could not work. |
1. Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. 2. Clean the solar panel. |
| Battery Failure |
Open the light and check if battery is dispalced or outer has been damaged . Battery maturing, lights used more than 2 years. |
1. If damage caused by transportation, please return to our factory for repairing or replacement. 2. Contact us to buy the same type battery if battery maturing. |
|
| No induct | Sensor Failure | Move in the range of detection under the half power lighting condition, if light not turns to full power ,could judge the sensor failure. | If confirming failure caused by controller or sensor, please return to our factory for repairing or replacement. |
| Flashing light | Controller (timer) setting wrong | Intelligent mode opens due to an exceeding output power of the controller and light flashing. | Return to our factory to reset or replace the products. |
Shining-star Gen3 series solar LED street light feature and advantage
Powered by high power and super brightness 5050 LED chips, system lumens output up to 220lm/W.
Adopting high efficiency monocrystalline silicon solar panel, conversion rate is more than 21%.
Module controller design and one step pull- out battery pack, easy to maintain.
Detachable window design for battery box and intelligent controller
Grade A LiFePO4 battery, capacity is kept more than 80% after 4000 cycles
PWM and MPPT solar charger, intelligent to control the dimming by PIR/Motion sensor and timer.
Horizontal or vertical pole installation, mounted angle is adjustable.
Double waterproof design, protection grade IP66.
Flexible Flexible selection of high luminous flux, customized the best solution of luminaire according to local sunshine.
Shining-star Gen3 series 220lm/W solar LED street light dimension drawing
