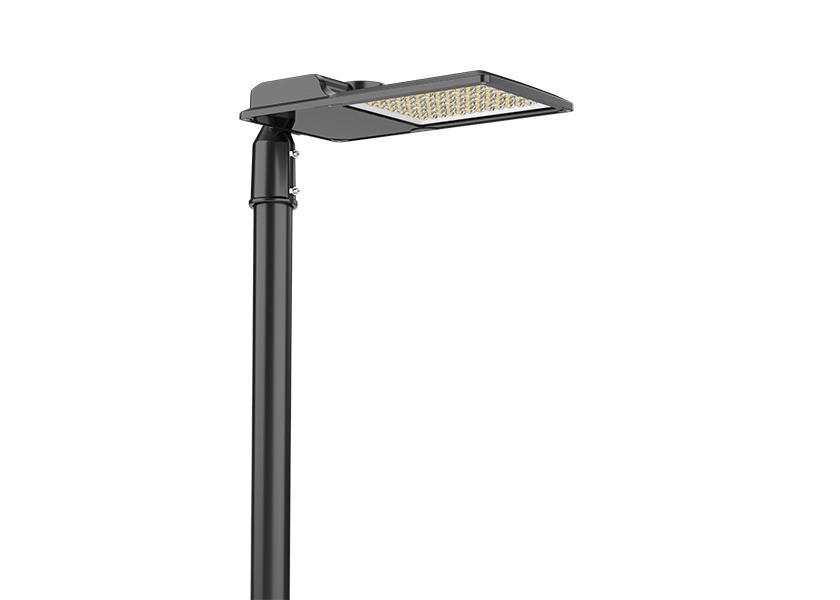

200lm/W IP66 IK08 100W LED Street Light INMETRO SAA CB CE ENEC Approved Public Lighting
Class I Eagle Gen5 series 200lm/W LED street light Class I datasheet
| Product Code | SL-ST30WxxE5SGH | SL-ST50WxxE5SGH | SL-ST60WxxE5SGH | SL-ST80WxxE5SGH | SL-ST100WxxE5SGH | SL-ST120WxxE5SGH | SL-ST150WxxE5SGH |
| Power | 30W | 50W | 60W | 80W | 100W | 120W | 150W |
| Luminous Efficacy | 200lm/W (@4000K/5000K 70Ra) |
| Insulation class | Class I |
| Input Voltage | AC100-277V |
| LED Type | TYF / Guangyou 5050 |
| Driver Brand | SOSEN / MOSO / INVENTRONICS |
| Surge Protection | Support built-in 10KV / 20KV SPD |
| Ral code | RAL9006 white aluminium / RAL9004 signal black |
| CRI | >70Ra |
| CCT | 1700K-6500K |
| Power factor | 0.95 |
| Beam Angle | Type II S, Type II M, Type III S, Type III M |
| Material | ADC12, anti-UV optical PC lens or PMMA lens, IK08 tempered glass (optional IK09) |
| Life Span | ≥120,000 hours (L70) |
| L90B10 | 100,000 hours |
| IP Grade | IP66 |
| Operating Tem. | -30~50°C |
| THD | <12% |
Class I Eagle Gen5 series 200lm/W LED street light Class I datasheet (165W-280W)
| Product Code | SL-ST165WxxE5SGH | SL-ST180WxxE5SGH | SL-ST200WxxE5SGH | SL-ST280WxxE5SGH |
| Power | 165W | 180W | 200W | 280W |
| Luminous Efficacy | 200lm/W (@4000K/5000K 70Ra) |
| Insulation class | Class I |
| Input Voltage | AC100-277V |
| LED Type | TYF / GUANGYOU 5050 |
| Driver Brand | SOSEN / MOSO |
| Surge Protection | Support built-in 10KV / 20KV SPD |
| Ral code | RAL9006 white aluminium / RAL9004 signal black |
| CRI | >70Ra |
| CCT | 1700K-6500K |
| Power factor | 0.95 |
| Beam Angle | Type II S, Type II M, Type III S, Type III M |
| Material | ADC12, anti-UV optical PC lens or PMMA lens, IK08 tempered glass (optional IK09) |
| Life Span | ≥120,000 hours (L70) |
| L90B10 | 100,000 hours |
| IP Grade | IP66 |
| Operating Tem. | -30~50°C |
| THD | <12% |
200lm/W IP66 IK08 100W LED Street Light INMETRO SAA CB CE ENEC Approved Public Lighting Features:
Modern design, the minimalist design puts the focus squarely on the product itself.
Support built-in 10KV / 20KV /40KV SPD (surge protection device), extends the lifetime of the product while protecting the driver and the luminaires from thunder too.

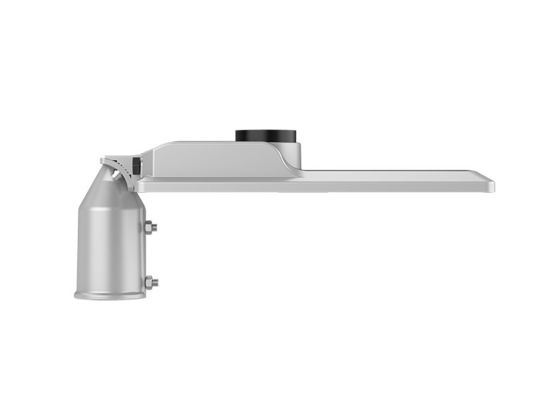

Adjustable bracket 0°-90°, adjustable bracket for horizontal or vertical installation.
High efficiency coating, high product reliability by applying 13 steps painting process.
Optional C5-M grade, chromic treatment for the hosuing, luminaires come with TUV C5-M test report.
Excellent heat dissipation design, sleek appearance design decreases the dust falling on the fixture.
System lumens output up to 200lm/W, powered by TYF / GUANGYOU 5050 LED, high efficacy and superior robustness in a multi-die, high power package, enabling cost-effective system design.
Provide 5/7/10 year warranty, provide standard 5 year warranty, optional 7/10 year warranty for the luminaires.
A variety of drivers are available, such as SOSEN, MOSO, INVENTRONICS,UPOWERTEK, MEAN WELL, TRIDONIC.
3 pin, 5 pin, 7 pin NEMA socket with photocell sensor or shorting cap, photocell sensor working method: 10LX (sun set/dark) turn on and 50LX (sun rise) turn off automatically, the level could be adjusted according to customers’ requirement, the lamps operate depends on the ambient luminance, the lamps will lighten with a suitable illumination automatically when it is dark.
5 pin and 7 pin NEMA socket to extend for the 0-10V dimming or DALI control
DALI control. Luminaries can be controlled by a computer.
0/1-10V dimming. Luminance can be divided into 10 level, set it upon your specific requirements.
Anti-ultraviolet radiation optical PC lens (PMMA lens optional)
Anti-ultraviolet radiation PC optical lens with high light transmittance and secondary light dissipation technology, optional light distribution curve, available with optics Type II (S/M), Type III (S/M)
