| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | TUV CB CE RoHS SAA UKCA |
| Model Number: | SL-ST80E |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | 1-100US$/unit |
| Packaging Details: | Standard packaging or customized |
| Delivery Time: | 10-18 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5,000 units per month |
| Lifetime: | 120,000 Hours (TM21 Report) | LED Type: | High Power 5050 LEDs |
|---|---|---|---|
| Warranty: | 5 Years | Lumens: | 210lm/W |
| IP Rating: | IP66 | IK Rating: | IK08 |
| CCT: | 1700-6500K / PC AMBER | Battery: | LiFePO4 12.8V 42Ah |

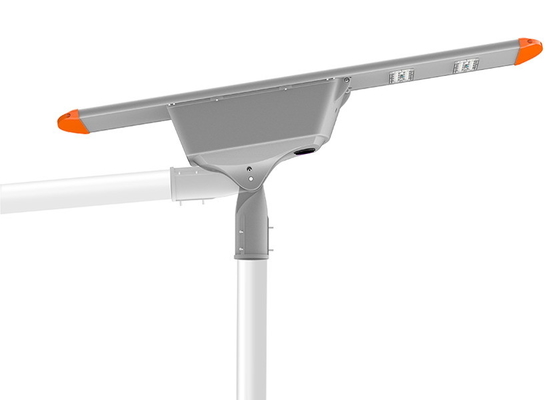

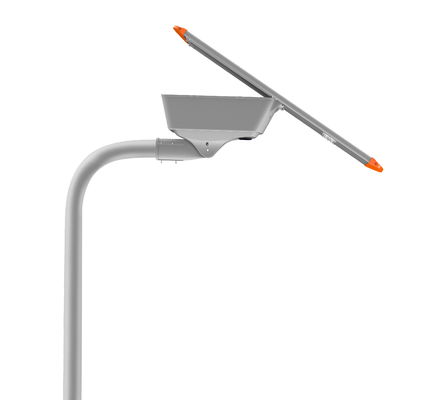

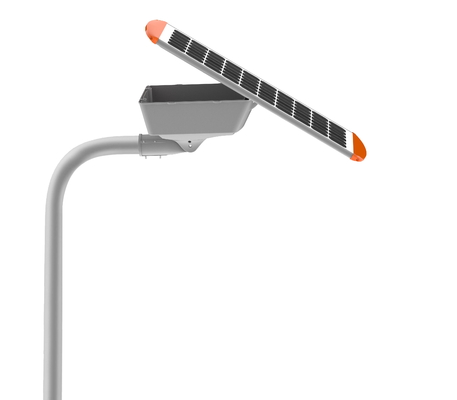

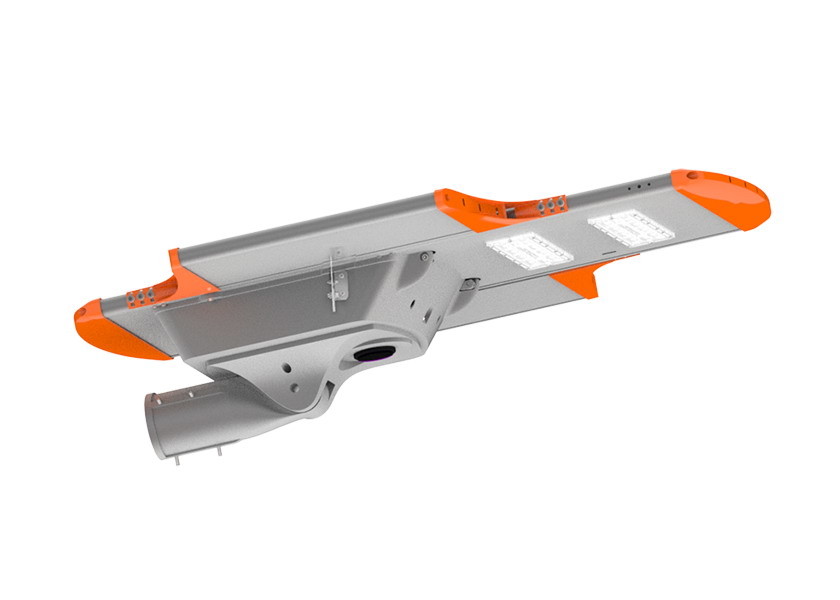

Energy-max Series 210 lm/W 80W IP66 Integrated Intelligent Solar LED Street Light TUV CB CE SAA Approved Solar Lighting Smart City Lighting Solar Powered Street Light
Energy-max Series 210 lm/W 80W IP66 Integrated Intelligent Solar LED Street Light Datasheet
| Product Code | SL-ST30E | SL-ST40E | SL-ST50E | SL-ST60E | SL-ST80E | SL-ST100E | SL-ST120E | SL-ST150E | SL-ST200W |
| Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 200W |
| Monocrystallinesolar panel power | 18V 40W | 18V 50W | 18V 60W | 18V 80W | 18V 100W | 18V 120W | 36V 150W | 36V 180W | 36V 240W |
| LiFePO4 battery capacity | 12.8V 18AH | 12.8V 24AH | 12.8V 30AH | 12.8V 36AH | 12.8V 42AH | 25.6V 24AH | 25.6V 30AH | 25.6V 36AH | 25.6V 48AH |
| Luminous Efficacy | 210lm/W | ||||||||
| Charging time | 6 hours | ||||||||
| Working time | Working last for 5-7 Days once full charged (Auto Control) | ||||||||
| LED Type | GUANGYOU 5050 / TYF 5050 / LUMILEDS LUXEON 5050 | ||||||||
| CCT | 1600K-6500K | ||||||||
| Operating temp. | -20~65°C | ||||||||
| Beam Angle | Type II S, Type II M, Type III S, Type III M | ||||||||
| Material | ADC12, anti-UV optical PC lens | ||||||||
| Life Span | ≥120,000 hours (L70) | ||||||||
| L90B10 | 100,000 hours | ||||||||
| IP Grade | IP66 | ||||||||
Maintenance of Energy-max series 210lm/W IP66 Integrated Solar LED Street Light 5 Years Warranty
Trouble shooting for Energy-max series IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty
| Phenomenon | Cause | Inspection methods | Solution |
|
Lights not work |
Switch does not turn on | Check whether the switch turns on | Turn on the switch |
| Switch failure | Make the switch short circuit, if it is still lighting up, could judge the switch failure. | Replace Switch | |
| Battery runs out | Long rainy day or wrong installation site could not charge enough power. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, then could judge battery runs out or low power cause system could not work. | Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. | |
| LED Failure | Firstly, adjust the DC power supply to voltage 9V and current less than 1A, then connect the positive and negative electrode of DC power supply to LED, if LED could not light, could judge LED failure. | If confirming LED failure, please contact us to return and replace. | |
|
Short lighting time |
Low battery |
Wrong installation or dust and leaves cover on solar panel cause not enough solor power to battery. 1. Check whether there is dust or leaves covering on the solar panel. 2. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, that could judge battery runs out or low power cause system could not work. |
1. Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. 2. Clean the solar panel. |
| Battery Failure |
Open the light and check if battery is dispalced or outer has been damaged . Battery maturing, lights used more than 2 years. |
1. If damage caused by transportation, please return to our factory for repairing or replacement. 2. Contact us to buy the same type battery if battery maturing. |
|
| No induct | Sensor Failure | Move in the range of detection under the half power lighting condition, if light not turns to full power ,could judge the sensor failure. | If confirming failure caused by controller or sensor, please return to our factory for repairing or replacement. |
| Flashing light | Controller (timer) setting wrong | Intelligent mode opens due to an exceeding output power of the controller and light flashing. | Return to our factory to reset or replace the products. |
